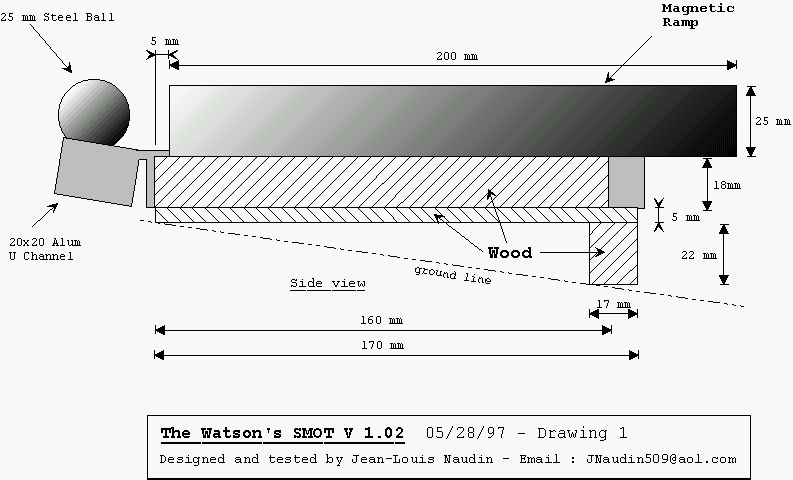

S.M.O.T v 1.02 - BLUEPRINT

by Jean-Louis Naudin

created on 29 May 1997 - JLN Labs

Look at the pictures and videos of the SMOT v1.02 linked units.

Additional informations :

Steel ball : 12 mm diam. weight = 70 gr

Magnets : Ferrite Barium 40 x 25 x 10 mm ( anisotrop )

• Energy produced ( BxH ) max : 29.5 kJ/m^3 - 3.7 MGOe
• Remanence ( Br) : 400 mT - 4000 G
• Coercitivity ( T=20°C ) :
  • bHc : 160 kA/m - 2000 Oe
  • jHc : 165 kA/m - 2050 Oe
• Permeability : 1.1 mT/(kA/m)
• Temp. coef. -0.20%
• Max operating temp. : 200 °C
• Density : 4.9 g/cm^3
• Curie point : 450 °C
