The Transdimensional's Lifter2 Experiment
By Jean-Louis Naudin
created on October 10th, 2001 - JLN Labs - Last update November 7th, 2001
All informations in this page are published free and are intended for private/educational purposes and not for commercial applications


On June 2001, Transdimensional Technologies has presented the Lifter1 and Lifter2 devices. The Lifter1 device was built with three capacitors joined so as to form a triangle assembly and the Lifter2 is three time heavier and three time bigger than the Lifter1. These devices are able to lift their own weight and they are a "modern version" of the Townsend Brown Electrokinetic Apparatus. The Lifters are using the Biefeld-Brown Effect to generate the main thrust to self levitate. I have already built some similar devices in April 1999, see "The EHD Flying Saucer v1.0 ".

Today, I have replicated successfully the Transdimensional Power3 Lifter1 and Lifter2. You will find below the full details of the Lifter2 replication that I have conducted.

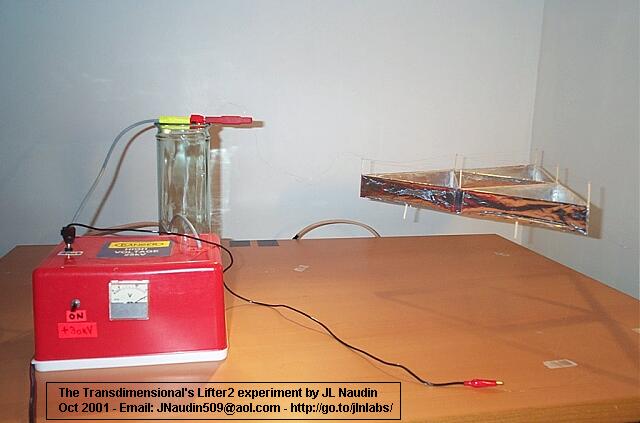

The Lifter2 is maintained on the ground base with 3 thin nylon threads to avoid that it escapes to the ceiling...

The Lifter2 specifications

The Lifter2 is an asymmetrical capacitor with one electrode made with a thin corona wire placed at 30 mm from the main rectangular electrode constructed "ala" Townsend Brown.

  • Weight : 6.6 g

  • Main Triangle size : Equilateral with each side 400 mm wide and 40 mm high made with a thin aluminum sheet.

  • Mounting legs : 30 mm length.

  • Main frame : balsa wood 15/10 mm thick and 2 mm wide.

  • Power required to compensate the weight : 21.9 Watts ( 38.5KV @ 570 uA )

  • Power required for a stable flight above the ground with a payload of 3 g : 48.5 Watts ( 43.35 KV @ 1.12mA )

The Lifter2 works very well with a simple 30KV power supply ( see the details and diagram )


It is also possible to use the THT power supply output from an old PC Color monitor ( see the photo above )

See the video of Lifter2 experiment

To see the videos, the free downloadable RealPlayer is required

Click on the picture above to see the video ( 465 Kb )

Lifter2 Test Results : Today I have reproduced successfully the Lifter2 device presented by Transdimensional Technologies and I can confirm fully all their claims. The Lifter2 is a fascinating device, the resulting lift is stronger than the Lifter1 ( 150% ) and the it is able to accelerate upwards very quickly and silently. The Lifter2 has a weight of 6.6 g and is able to carry a payload up to 3 g with 48.6 Watts.

Comparison chart :

  Weight Payload Power to compensate the weight Power for a stable flight
Lifter 1 2.3 g 1 g 18 Watts ( 40 KV @ 450 uA ) 23.9 Watts ( 41.9 KV @ 570 uA )
Lifter 2 6.6 g 3 g 21.9 Watts ( 38.5KV @ 570 uA ) 48.5 Watts ( 43.35 KV @ 1.12mA )

See Also :

Documents references :

  • The Transdimensional Technologies web site

  • "Electrogravitics Systems" ( Report on a new propulsion methodology) by Thomas Valone - ISBN 0-9641070-0-7

  • " Subquantum Kinetics " by Paul A. LaViolette - ISBN 0-9642025-0-6

  • " L'Effet Biefeld-Brown - Histoire secrète de l'antigravité - Vol 1 "by Alexandre Szames - ISBN 2-91377-01-7

  • Electrokinetics brown by Paul E. Potter

  • US Patent N°2949550 filed on Aug 16, 1960 "Elektrokinetic Apparatus" from Thomas Townsend Brown

  • The Thomas Townsend Brown dedicated web site
